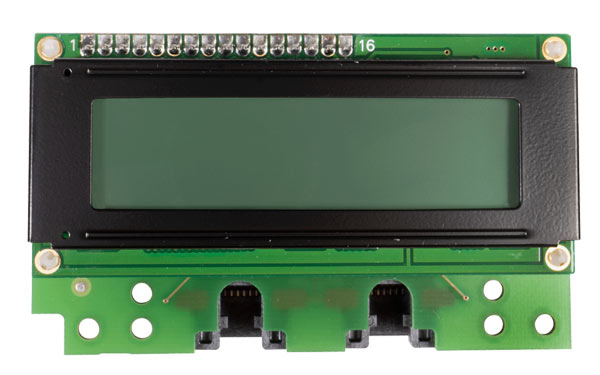

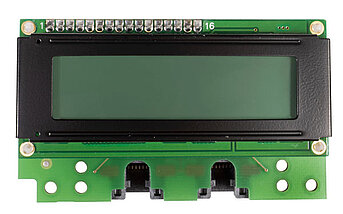

DPM2x16FP Display Module
The display module is intended for use with the CC613 charge controllers. It is used to visualize the status of the charge controller or charging station/wallbox (e.g. function, error)
Suitable accessories for Charge Controller:
The display module is intended for use with the CC613 charge controllers. It is used to visualize the status of the charge controller or charging station/wallbox (e.g. function, error)
Suitable accessories for Charge Controller:
Features
- LED display with 2 x 16 characters
- Two RJ45 interface sockets
Applications
- For use in electric vehicle (EV) charging stations, wall boxes and street light charging points
DPM2x16FP Display Module Variant(s)
| Type | Art. No. |
|---|---|
| DPM2x16FP | B94060120 |
Downloads for DPM2x16FP Display Module
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| We are your eMobility partner! | Flyer | 262.3 KB | EN | 2023/11/2929.11.2023 | |
| DPM2x16FP-Modul | Manuals | 637.3 KB | DE | 2020/07/2020.07.2020 | D00296 |
| DPM2x16FP Module | Manuals | 808.0 KB | EN | 2017/09/0505.09.2017 | D00296 |
